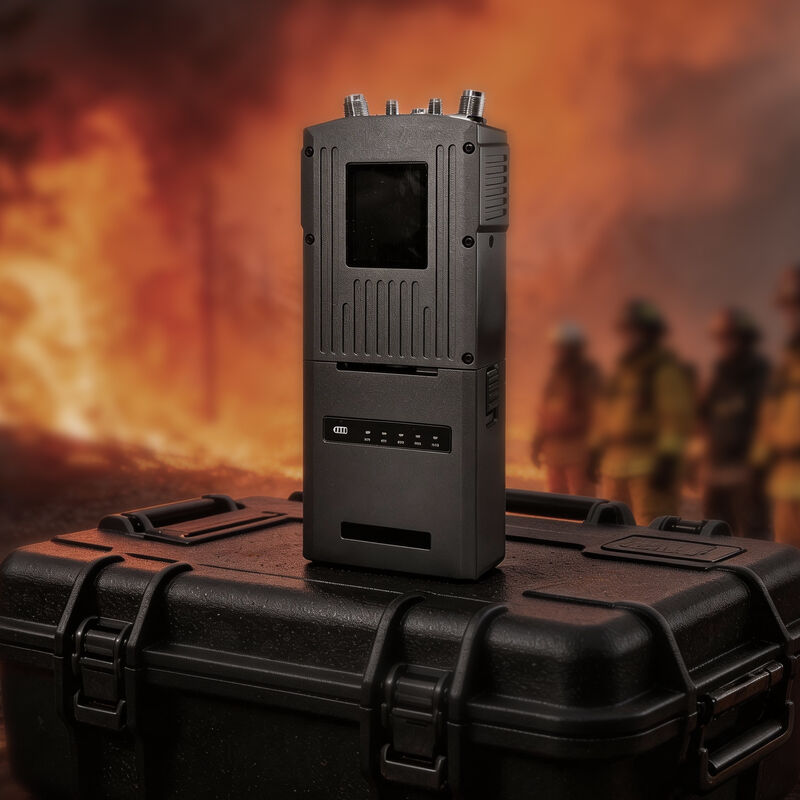

Created with Pixso. Deployable Self-Forming Mesh Communication Handsets
Informations détaillées
Certification:
CE
Interface:
Port série, port Ethernet, interface d'alimentation, interface RF
Dimensions nettes de l'appareil:
≤225 × 90 × 50 mm
Poids net de l'appareil:
≤1.2 kilogramme
Bande passante:
5, 10, 20 MHz
Gamme de fréquences:
UHF, L, S, personnalisable
Description de produit

Product Introduction


Despite its compact form factor, this radio offers powerful communication capabilities. It supports 4W transmit power and a 2×2 MIMO system, providing a reliable, transparent channel for video, voice, and data in a portable, handheld design suitable for mobile ad hoc networking.


Wideband Communication
Supports wideband communication in the 1420–1520 MHz frequency band, effectively adapting to complex terrain environments, and provides customizable frequency bands.
Intelligent Frequency Selection
Supports intelligent frequency selection, with adjustable bandwidths of 5/10/20 MHz.
HD Display
Equipped with a display screen for viewing device status, link status, straight-line distance to nodes, etc. Quick configuration can be performed via on-screen buttons.
Battery Indicator
Features a touch-activated battery display; a light touch shows the current battery level.
