SDR Ad-hoc Network Mesh Radio
| Brand Name: | hanxun |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T,L/C |
Detail Information
Certification:
CE
Interface:
Serial Port, Ethernet Port, Power Interface, RF Interface
Net Device Dimensions:
≤225 × 90 × 50mm
Net Device Weight:
≤1.2 Kg
Bandwidth:
5、10、20MHz
Frequency Range:
UHF、L、S, Customizable
Product Description
Product Introduction

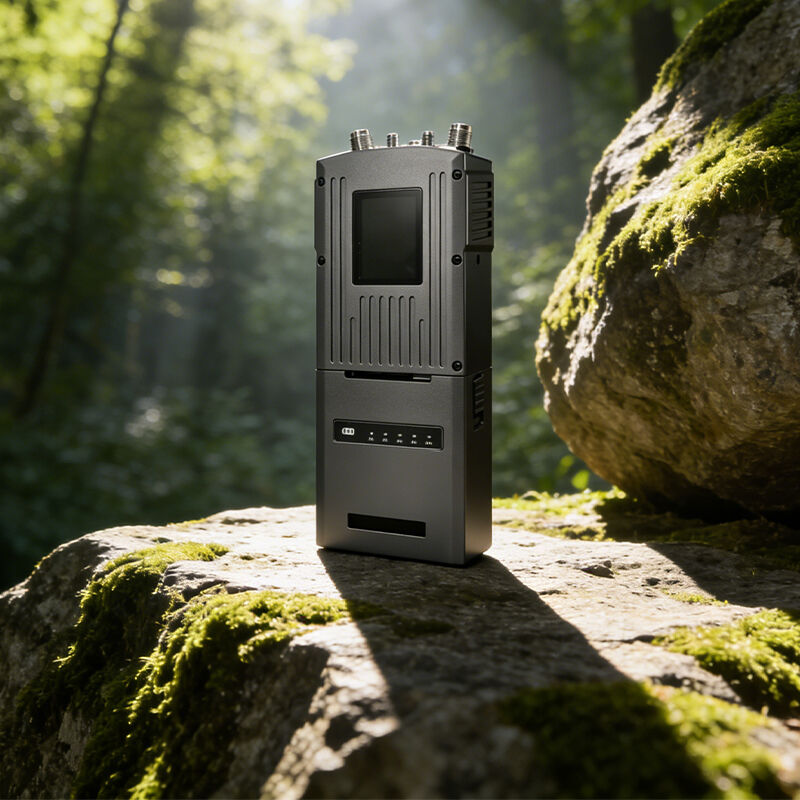

1.Designed for field operations, this portable MANET radio offers effortless networking.
2.Its infrastructure-free ad hoc architecture auto-forms peer-to-peer connections.
3.The 2×2 MIMO system with 4W power boosts range.
4.the 1420–1520 MHz wideband adapts to mountains or urban environments. Intelligent frequency selection (5/10/20 MHz) mitigates interference.
5.The HD display shows node locations, link quality, and device stats; touch controls simplify settings.
6.A tap-sensitive battery meter provides instant power feedback.
Specifications
| Encryption | Support software encryption |
| Power Supply | Battery-powered, DC external power supply |
| Modulation | BPSK/QPSK/16QAM/64QAM,dynamic self-adapting |
| Networking capability | 32 nodes, support customization |
| MIMO Mode | 2T2R |
| Network port | 100-megabit data network port |
| Other functions | Time Division multiplexing, frequency division multiplexing, beam forming, MIMO |
