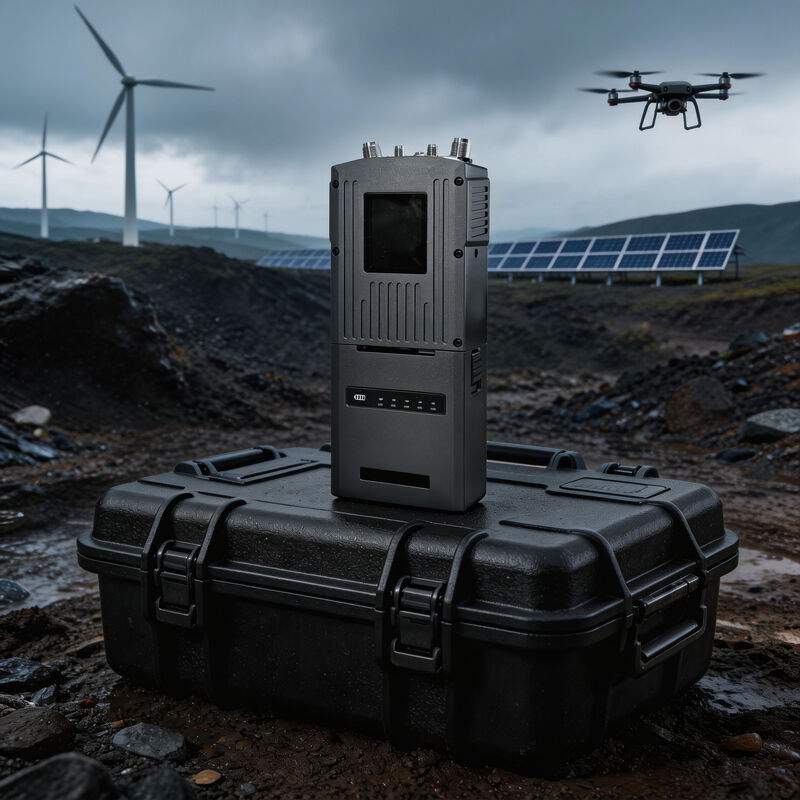

Vehicle Mounted Mesh Radio 1420MHz–1520MHz Long Range Radio Communication
| Brand Name: | hanxun |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T,L/C |
Vehicle Mounted Mesh Radio
,Mesh Radio 1420MHz
,1520MHz Long Range Radio Communication
Vehicle Mounted Mesh Radio Fast Command Link
Product Introduction
1.Operating on a 1420–1520 MHz wideband with selectable 5/10/20 MHz bandwidths, this MANET radio excels in frequency agility.
2.Its 2×2 MIMO architecture boosts spatial diversity, paired with 4W transmit power for improved link budgets.
3.Layer 2 transparency abstracts network complexity, enabling direct IP traffic (video/voice/data) across multi-node networks.
4.The HD screen provides actionable insights: device status, link RSSI, and estimated node distances.
5.Configuration is simplified through on-screen menus.
6.Battery level is accessible via a touch-activated meter.
Specifications
|
Encryption |
Support software encryption |
|
Power Supply |
Battery-powered, DC external power supply |
|
Modulation |
BPSK/QPSK/16QAM/64QAM,dynamic self-adapting |
|
Networking capability |
32 nodes, support customization |
|
MIMO Mode |
2T2R |
|
Voice function |
PTT voice communication system |
|
Network port |
100-megabit data network port |
|
Other functions |
Time Division multiplexing, frequency division multiplexing, beam forming, MIMO |
Detailed Data
| Transmitting power | Frequency(Mhz) | Bandwidth | Transmission distance | Transmission rate | Interface | Number of nodes | Encryption |
| 2×0.5W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥30KM | 47Mbps | LAN×1 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×2W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥50KM | 47Mbps | LAN×2 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×3W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥50KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×5W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥100KM | 47Mbps | LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×8W | 3300～3500 3500～3700 3800～4000 4000～4200 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥50KM | 47Mbps | LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×10W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥200KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×40W | 1350～1450 1420～1530 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥300KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
