Emergency Communication Radio

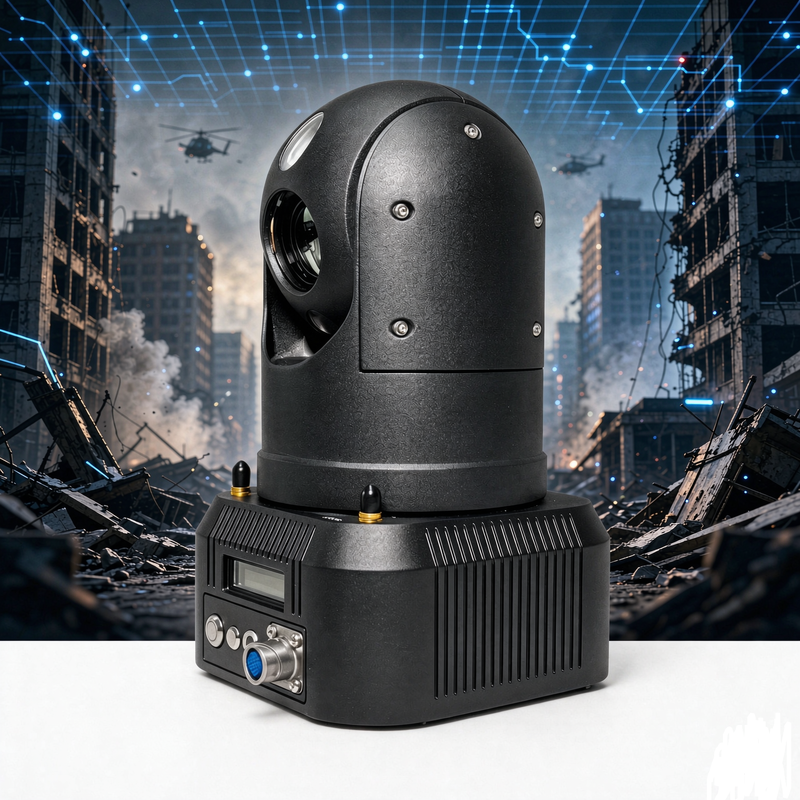

Created with Pixso. 360° Mesh Radio for Border Patrol – All-Weather Surveillance & Remote Communication
Detail Information
Place of Origin:
China
Certification:
CE
Interface:
Serial Port, Ethernet Port, Power Interface, RF Interface
Net Device Dimensions:
≤260×156mm
Net Device Weight:
≤4.05kg
Bandwidth:
5/10/20/40MHz (Adjustable)
Frequency Range:
UHF、L、S, Customizable
Packaging Details:
box
Product Description

Perimeter Security: 360° Mesh Surveillance for Remote Border Patrol Operations


Product Description

In remote border areas, limited communication coverage and complex terrain bring huge challenges to perimeter security and patrol operations. This integrated system merges 360° pan-tilt surveillance and mesh radio networking, providing a dependable solution for real-time monitoring and information transmission in isolated regions.


Technical Highlights

  • Efficient Management System
    Supports unified management through PC and mobile APP. Users can view dynamic network topology, track link performance and adjust configurations remotely, simplifying daily operation and maintenance.
  • Intuitive OLED Display
    The integrated OLED screen visualizes critical device information, including remaining battery, available storage and working status, helping operators quickly grasp device conditions on site.
  • 360° Panoramic Monitoring
    Devices support random deployment according to mission requirements. The 360° ultra-HD pan-tilt camera eliminates monitoring blind spots and captures clear on-site images.
  • Anti-Interference Frequency Hopping
    The system continuously detects spectrum interference. Once interference is detected, all nodes will automatically switch to clean frequency channels to sustain mesh network communication.
  • Quick & Flexible Deployment
    During missions, devices can be placed at fixed monitoring points. The high-suction magnet enables firm installation on vehicle roofs or telescopic tripods, supporting unmanned operation and minimizing deployment time.



Specifications


Encryption Support software encryption
Power Supply Battery-powered, DC external power supply
Modulation BPSK/QPSK/16QAM/64QAM,dynamic self-adapting
Networking capability 32 nodes, support customization
MIMO Mode 2T2R
Network port 100-megabit data network port
Other functions Time Division multiplexing, frequency division multiplexing, beam forming, MIMO
