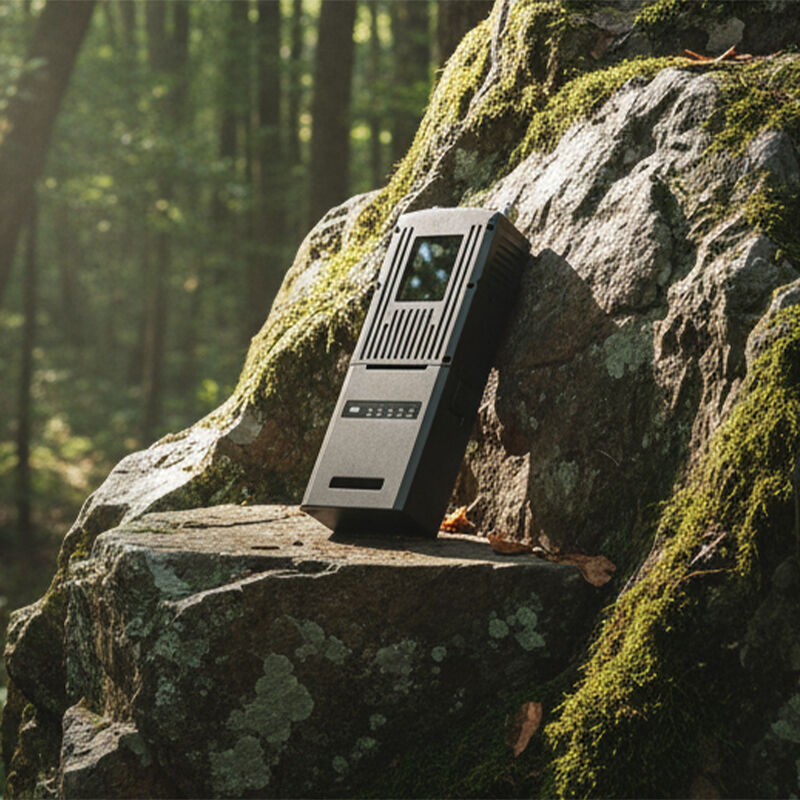

Drone Swarm Emergency Communication Radio UAV Long Range Mesh Radio
| Brand Name: | hanxun |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T,L/C |
Drone Swarm Emergency Communication Radio
,UAV Long Range Mesh Radio
,Emergency Communication Radio UAV
UAV Mesh Radio Long Range Drone Swarm Communication
Product Introduction
1.With a distributed MANET architecture and infrastructureless operation, this radio enables rapid, decentralized networking.
2.Its 2×2 MIMO dual-antennas and 4W transmit power optimize signal strength. Layer 2 transparency simplifies data transmission across nodes.
3.Supporting IP multimedia (video, voice, data) over a transparent channel, it’s ideal for mission-critical applications.
4.The 1420–1520 MHz wideband with intelligent 5/10/20 MHz frequency selection enhances adaptability.
5.The HD touchscreen offers real-time status monitoring and intuitive config.
6.The touch battery indicator ensures power awareness.
Specifications
|
Encryption |
Support software encryption |
|
Power Supply |
Battery-powered, DC external power supply |
|
Modulation |
BPSK/QPSK/16QAM/64QAM,dynamic self-adapting |
|
Networking capability |
32 nodes, support customization |
|
MIMO Mode |
2T2R |
|
Voice function |
PTT voice communication system |
|
Network port |
100-megabit data network port |
|
Other functions |
Time Division multiplexing, frequency division multiplexing, beam forming, MIMO |
Detailed Data
| Transmitting power | Frequency(Mhz) | Bandwidth | Transmission distance | Transmission rate | Interface | Number of nodes | Encryption |
| 2×0.5W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥30KM | 47Mbps | LAN×1 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×2W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥50KM | 47Mbps | LAN×2 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×3W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥50KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×5W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥100KM | 47Mbps | LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×8W | 3300～3500 3500～3700 3800～4000 4000～4200 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥50KM | 47Mbps | LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×10W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥200KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×40W | 1350～1450 1420～1530 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥300KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
