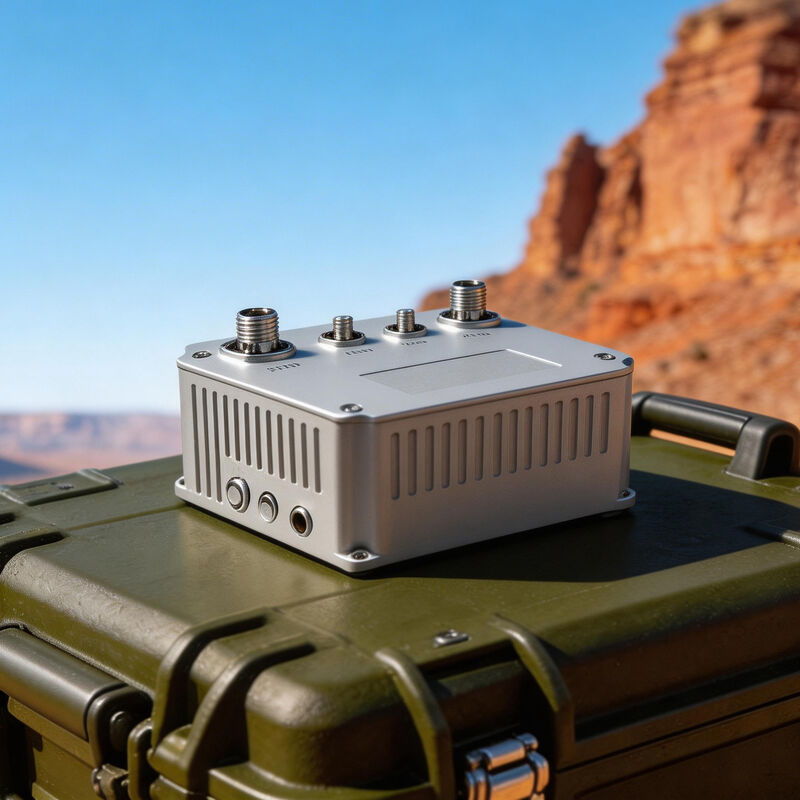

Robust NLOS MANET Radio Transceiver Drone Links Long Distance Radio
| Brand Name: | hanxun |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T,L/C |
Robust NLOS MANET Radio
,NLOS MANET Radio Transceiver
,NLOS Long Distance Radio
Robust NLOS MANET Transceiver for Long-Distance Drone Links
Product Introduction
1.Built for resilient air-ground synergy, this system offers multi-band customization and Mesh networking for infrastructure-independent operations.
2.Key features include self-healing links, dynamic network reshaping, and AI-driven routing optimization—ensuring uninterrupted connectivity in harsh environments.
3.Intelligent jamming resistance mechanisms preserve data stability, while its lightweight form factor and standard ports simplify integration into diverse terminals.
4.A holistic communication backbone enabling seamless real-time interactions between UAVs, ground stations, and airborne assets for enhanced collaborative missions.
Specifications
|
Encryption |
Support software encryption |
|
Power Supply |
Battery-powered, DC external power supply |
|
Modulation |
BPSK/QPSK/16QAM/64QAM,dynamic self-adapting |
|
Networking capability |
32 nodes, support customization |
|
MIMO Mode |
2T2R |
|
Voice function |
PTT voice communication system |
|
Network port |
100-megabit data network port |
|
Other functions |
Time Division multiplexing, frequency division multiplexing, beam forming, MIMO |
Detailed Data
| Transmitting power | Frequency(Mhz) | Bandwidth | Transmission distance | Transmission rate | Interface | Number of nodes | Encryption |
| 2×0.5W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥30KM | 47Mbps | LAN×1 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×2W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥50KM | 47Mbps | LAN×2 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×3W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥50KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×5W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥100KM | 47Mbps | LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×8W | 3300～3500 3500～3700 3800～4000 4000～4200 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥50KM | 47Mbps | LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×10W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥200KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×40W | 1350～1450 1420～1530 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥300KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
