Fire Rescue Radio
Created with Pixso. Humanitarian Mission Link Deployable Broadband Mesh For Global Relief Efforts
Detail Information
Place of Origin:
China
Certification:
CE
Interface:
Serial Port, Ethernet Port, Power Interface, RF Interface
Net Device Dimensions:
≤285 × 200 × 95mm
Net Device Weight:
≤5.2 Kg
Bandwidth:
5、10、20MHz
Frequency Range:
UHF、L、S, Customizable
Highlight:

Deployable Broadband Mesh

,

Global Relief Efforts Broadband Mesh

,

Humanitarian Mission Link Broadband Mesh

Product Description

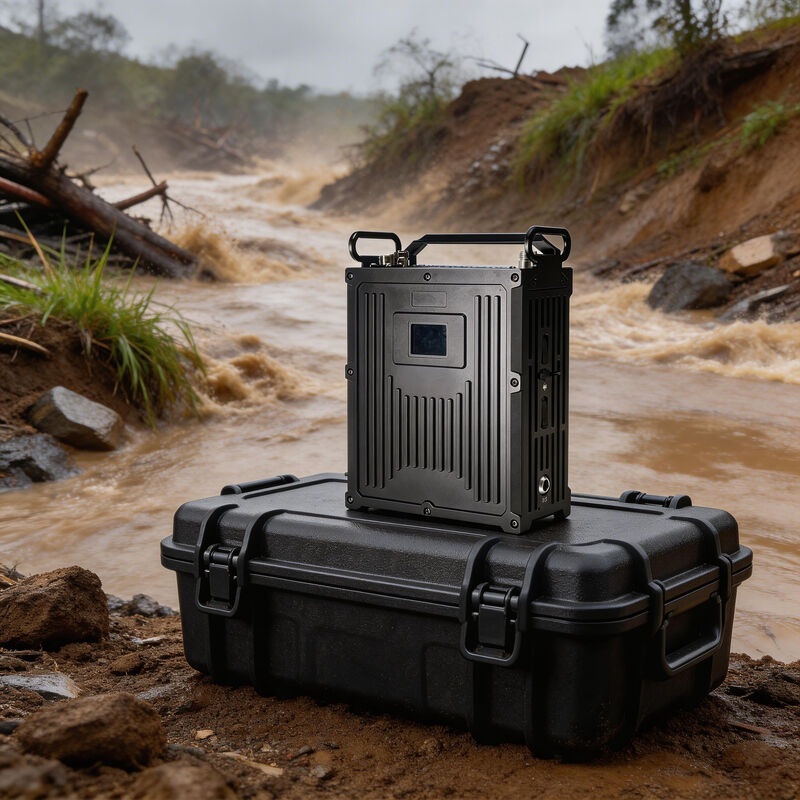

Humanitarian Mission Link Deployable Broadband Mesh for Global Relief Efforts


Product Introduction


Empower your rescue teams with unbreakable connectivity. This base station delivers 100 km of range and penetrates obstacles with ease. Don't let terrain or interference stop your mission—deploy this high-bandwidth, anti-jamming solution for instant, reliable emergency communication and command.


Easy Operation
User-friendly and efficient operation with one-button startup. It can be deployed flexibly in any scenario to respond rapidly to emergencies.
Collaborative Operation
Breaks the limitations of standalone equipment, enabling seamless linkage and mission collaboration between airborne and ground devices.
Efficient Management
Provides PC-based management tools, supporting dynamic topology display, link status monitoring, real-time data configuration and other functions.
Visualized Situational Awareness
Integrates multi-dimensional data to deliver real-time visualized command, assisting in decision-making and emergency response.



Specifications


Encryption

Support software encryption

Power Supply

Battery-powered, DC external power supply

Modulation

BPSK/QPSK/16QAM/64QAM,dynamic self-adapting

Networking capability

32 nodes, support customization

MIMO Mode

2T2R

Voice function

PTT voice communication system

Network port

100-megabit data network port

Other functions

Time Division multiplexing, frequency division multiplexing, beam forming, MIMO



Detailed Data


Transmitting power Frequency(Mhz) Bandwidth Transmission distance Transmission rate Interface Number of nodes Encryption
2×0.5W 608～678
1300～1400
1350～1450
1420～1530
1660～1710
2200～2300
2400～2500		 1.25MHz
2.5MHz
5MHz
10MHz
20MHz		 ≥30KM 47Mbps LAN×1
RS232×2
TTL×1
SBUS×1		 The maximum number of nodes supported ranges from 2 to 256

 AES256
*SM4
2×2W 608～678
1300～1400
1350～1450
1420～1530
1660～1710
2200～2300
2400～2500		 1.25MHz
2.5MHz
5MHz
10MHz
20MHz		 ≥50KM 47Mbps LAN×2
RS232×2
TTL×1
SBUS×1		 The maximum number of nodes supported ranges from 2 to 256

 AES256
*SM4
2×3W 608～678
1300～1400
1350～1450
1420～1530
1660～1710
2200～2300
2400～2500		 1.25MHz
2.5MHz
5MHz
10MHz
20MHz
*40MHz		 ≥50KM 47Mbps
*100Mbps		 LAN×2
RS232×2
TTL×1
SBUS×1		 The maximum number of nodes supported ranges from 2 to 256

 AES256
*SM4
2×5W 608～678
1300～1400
1350～1450
1420～1530
1660～1710
2200～2300
2400～2500		 1.25MHz
2.5MHz
5MHz
10MHz
20MHz		 ≥100KM 47Mbps LAN×2
RS232×2
TTL/SBUS×1		 The maximum number of nodes supported ranges from 2 to 256

 AES256
*SM4
2×8W 3300～3500
3500～3700
3800～4000
4000～4200		 1.25MHz
2.5MHz
5MHz
10MHz
20MHz		 ≥50KM 47Mbps LAN×2
RS232×2
TTL/SBUS×1		 The maximum number of nodes supported ranges from 2 to 256

 AES256
*SM4
2×10W 608～678
1300～1400
1350～1450
1420～1530
1660～1710
2200～2300
2400～2500		 1.25MHz
2.5MHz
5MHz
10MHz
20MHz
*40MHz		 ≥200KM 47Mbps
*100Mbps		 LAN×2
RS232×2
TTL/SBUS×1		 The maximum number of nodes supported ranges from 2 to 256

 AES256
*SM4
2×40W 1350～1450
1420～1530		 1.25MHz
2.5MHz
5MHz
10MHz
20MHz
*40MHz		 ≥300KM 47Mbps
*100Mbps		 LAN×2
RS232×2
TTL/SBUS×1		 The maximum number of nodes supported ranges from 2 to 256

 AES256
*SM4
