Customizable Backpack Radio MANET Terminals For Rapid Command Center Establishment
| Brand Name: | hanxun |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T,L/C |
Backpack Radio MANET
,Radio MANET Terminals
,Customizable Backpack Radio MANET
Backpack MANET Terminals for Rapid Command Center Establishment
Product Introduction

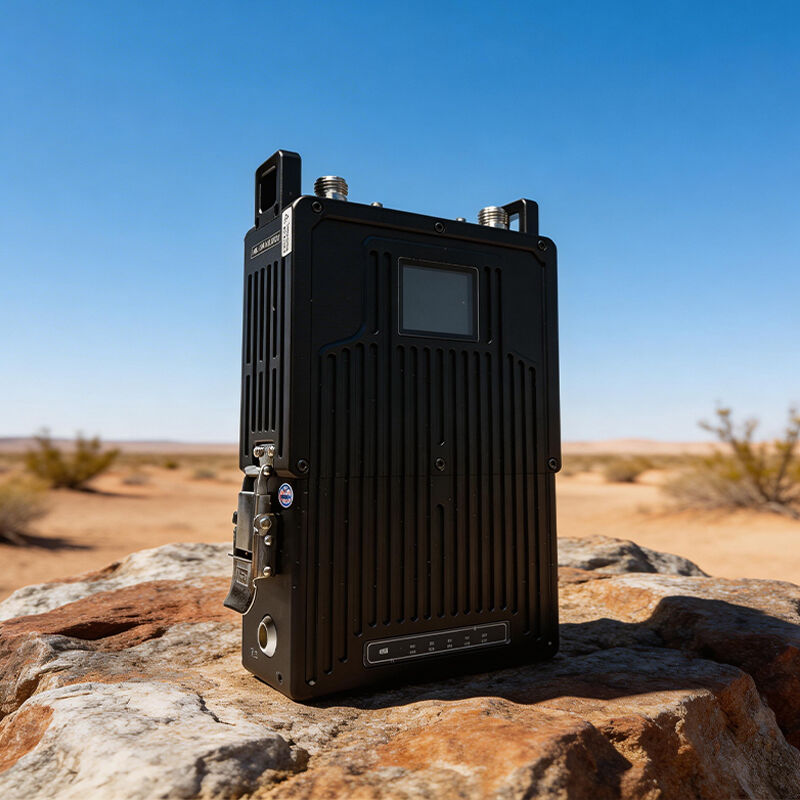

This portable manpack radio combines a compact, rugged IP67 design with powerful long-range capabilities. It delivers over 50 km of signal transmission, enabling real-time HDMI video backhaul and rapid, self-configuring networking. The device supports essential emergency command services, including voice group calls, GIS positioning, and personnel sensing, ensuring efficient coordination in harsh environments.
Intelligent Frequency Selection
Supports intelligent frequency selection with adjustable multiple bandwidths.
Efficient Management
Provides PC management tools, supporting dynamic topology display, link status monitoring, real-time data configuration and other functions.
Flexible Networking
Adopts infrastructureless ad hoc networking with configurable carrier bandwidth. It supports various network topologies including point-to-multipoint, chain relay, mesh and hybrid networking.
High Reliability
Equipped with aviation-grade connectors for stable connection. The device features excellent protection performance including high resistance to vibration and water.
Specifications
|
Encryption |
Support software encryption |
|
Power Supply |
Battery-powered, DC external power supply |
|
Modulation |
BPSK/QPSK/16QAM/64QAM,dynamic self-adapting |
|
Networking capability |
32 nodes, support customization |
|
MIMO Mode |
2T2R |
|
Voice function |
PTT voice communication system |
|
Network port |
100-megabit data network port |
|
Other functions |
Time Division multiplexing, frequency division multiplexing, beam forming, MIMO |
Detailed Data
| Transmitting power | Frequency(Mhz) | Bandwidth | Transmission distance | Transmission rate | Interface | Number of nodes | Encryption |
| 2×0.5W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥30KM | 47Mbps | LAN×1 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×2W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥50KM | 47Mbps | LAN×2 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×3W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥50KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL×1 SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×5W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥100KM | 47Mbps | LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×8W | 3300～3500 3500～3700 3800～4000 4000～4200 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz |
≥50KM | 47Mbps | LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×10W | 608～678 1300～1400 1350～1450 1420～1530 1660～1710 2200～2300 2400～2500 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥200KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
| 2×40W | 1350～1450 1420～1530 |
1.25MHz 2.5MHz 5MHz 10MHz 20MHz *40MHz |
≥300KM | 47Mbps *100Mbps |
LAN×2 RS232×2 TTL/SBUS×1 |
The maximum number of nodes supported ranges from 2 to 256 |
AES256 *SM4 |
